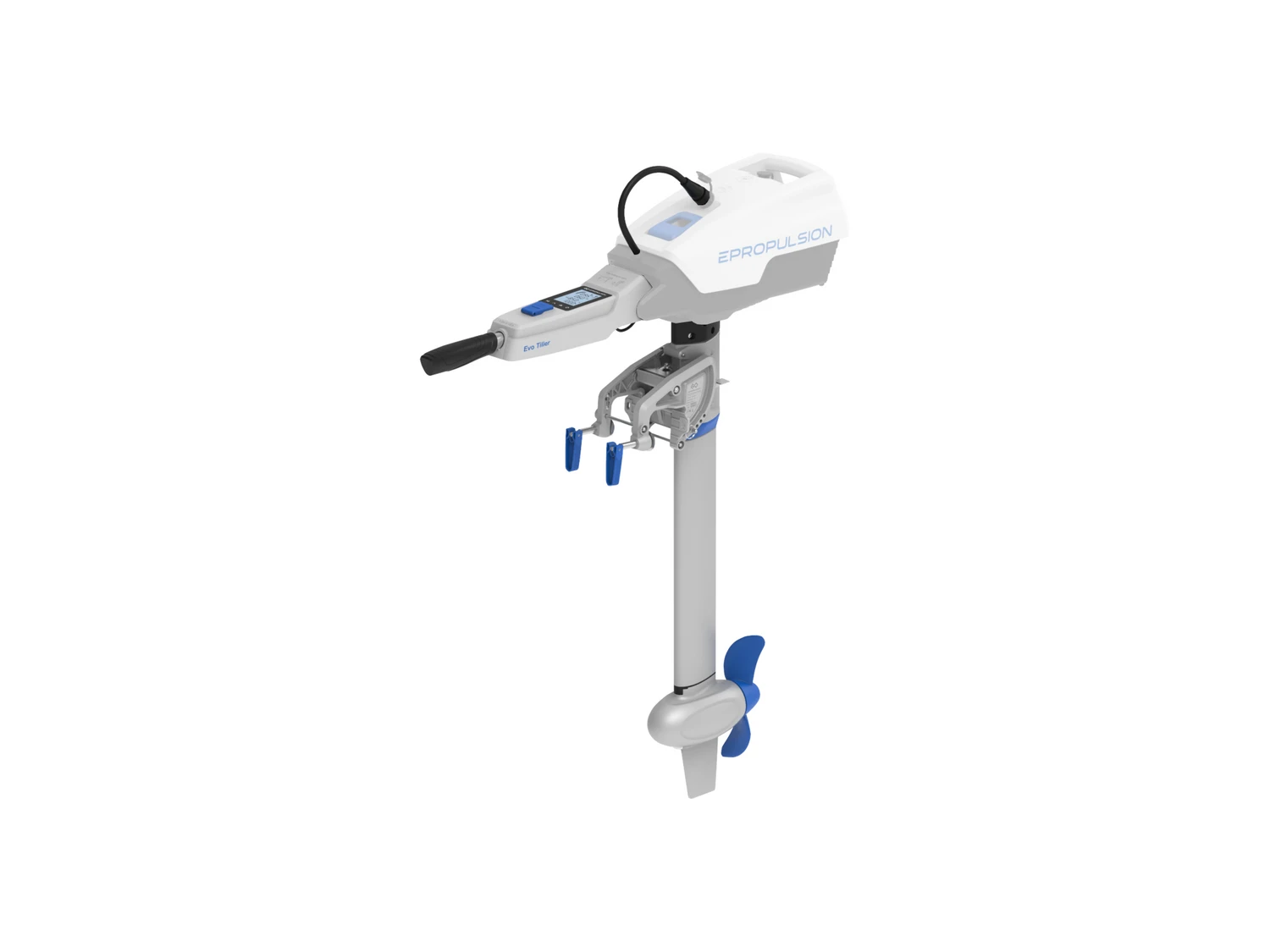

Spirit 1.0 Plus Long Shaft Motor Only

Normally without an external fuel tank, a portable outboard in the range of 2.5 HP to 5 HP, has a run time of less than 45 min. Spirit 1.0 Plus pushes the running time limit of a 3 HP outboard and has an overwhelming superiority with 50% more runtime.

PERFORMANCE TABLE

*Inflatable, dinghy, daysailor up to 1.5 tonnes.

**The performance data is based on a 12-foot aluminum boat with one Spirit 1.0 Plus. The actual speed, range and running time may vary because of different boats, load, weather, etc.

3RD-PARTY BATTERY COMPATIBLE

The 48V operating voltage allows Spirit 1.0 Plus to work with an external battery to extend the range. With the ePropulsion original E-Series LiFePO4 batteries, you will be free from range anxiety.

Specs

Power	1 kW (3HP equivalent)	1 kW (3HP equivalent)
Standard Battery	Spirit Battery Plus, 1276 Wh li-ion polymer	Spirit Battery Plus, 1276 Wh li-ion polymer
Input Voltage	39V – 60V	39V – 60V
Motor Weight*	11.3 kg / 24.9 lbs	10.6 kg / 23.4 lbs
Standard Charging	8.5 Hrs	8.5 Hrs
Fast Charging	3.5 Hrs	3.5 Hrs
External Battery	Yes, and E-Series Battery recommended	Yes, and E-Series Battery recommended
Propeller	11″ × 5.8″ 2-blade composite propeller	11″ × 5.8″ 2-blade composite propeller
Trim / Tilt Angle	0°, 7°, 14°, 21° / 85°	0°, 7°, 14°, 21° / 85°
Shaft Length	Short, Long	Short, Long
Control	Evo Tiller	Evo Top Mount Control / Evo Side Mount Control / Evo Dual Remote Control
Hydrogeneration	Yes	Yes
Motor	Brushless DC motor	Brushless DC motor
Direct Drive	Yes	Yes
Maintenance-Free	Yes	Yes



*The weight is measured with the short shaft version.
